It is a challenge to get a window completely overlooked from the outside. 55mm represent the elegance and the perfection of the uprights. A symmetrical mass, an identical exterior appearance for fixed and moving parts, and undoubtedly a more important light span.
Whatever the application, the outside view will always be 55 mm.
The reinforced profiles allow for large spans and respect the architectural characteristics of the windows of old buildings.
Unicity preserves the harmony of the facades and the identity of contemporary or classic buildings.
Possibility of using the 22 mm grid profile, respecting the original models and architecture. The non-apparent opening reveals all its advantages.
MODERN AND ELEGANT LINES
• Product tested at ENSATEC according to UNE-EN ISO 10077.1: 2000 standards.
• Aluminum hardware.
• Drainage not apparent for a careful exterior aesthetic.
• Filling up to 42 mm.
UNICITY HI
Both its aesthetics as well as its acoustic and thermal performance, Unicity is one of the best options for urban rehabilitation.
DESIGN

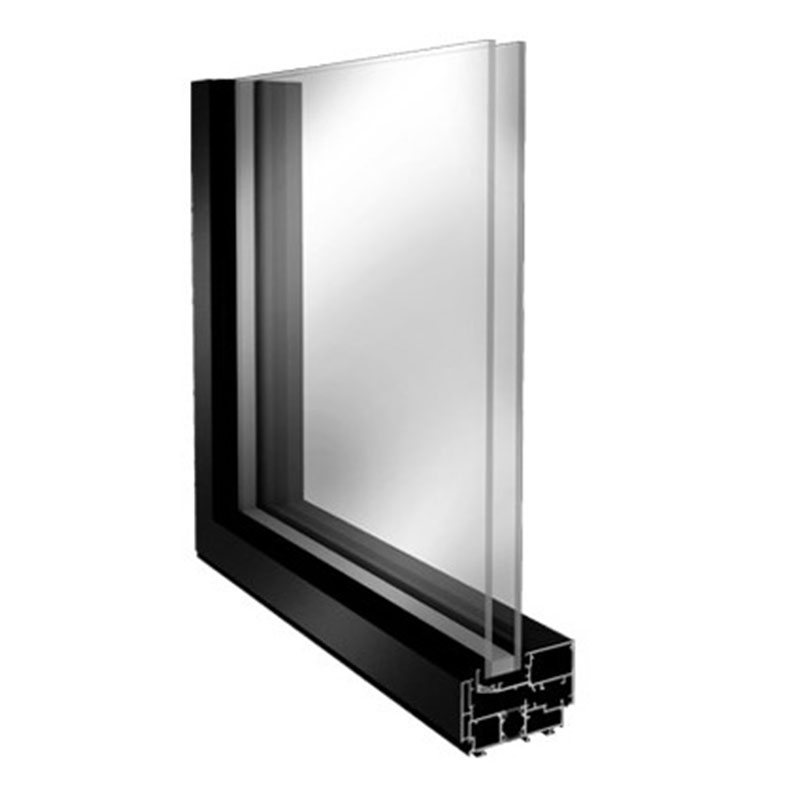

• Casement window with a purely architectural aesthetic. View of aluminum from the uniform and reduced exterior, 55 mm, in the combinations: fixed, fixed / leaf and central inverter of two leaves. Straight lines.
DIMENSIONS
• Maximum weight of 140 kg, for a maximum measure of approximately 2500 x 1000 mm, either for stop or swing-stop applications
THERMAL INSULATION
• Thermal bridge rupture ensured by two 34 mm polyamide caps. These caps will be of the flat type to avoid water retention. Also considering the effect of double glazing, there is a 55% improvement in thermal performance compared to a single window. It allows reaching a value of UH = 1.1 W / m2K (bay window 1 sheet L 1.25 m x H 2.18 m with triple glass Ug = 0.6).
SOUNDPROOFING
• The average outdoor noise in an urban area is around 60 decibels. A double glazed Unicity window reduces noise by 40 dB, providing a level that ensures comfort inside.
SEALING
• Tightness achieved by a system composed of a triple barrier of EPDM joints of marine quality, without interruption
at the angles. The outer gasket of the sheet ensures the tightness of the assembly, and especially between the rim and the sheet.
FILLING
• Thermal Bridge Break Sheet: 24 to 38 mm.
• Thermal Bridge Rippled Sheet: 28 to 42 mm.
• Fixed: from 20 to 42 mm.
• Glazing using sea-quality EPDM joints.
ACCESSORIES
• Court crutch of 7 with and without key. The closures are handled with a unidirectional recessed cremone hidden in the leaf.
Possibility of closing 4 or 6 points. Maximum glass weight up to 140 kg per sheet.
OPTIONS
• Casement windows with 2 or 3 body hinges
• Oscillating-stop (OB) and oscillating-stop (BO)
• Tipper
• Hidden hardware: oscillating-stop (OB) and oscillating-stop (BO).
A wide variety of finishes are available to meet the requirements of individual projects, add to existing buildings and provide additional design freedom for architects and designers:
• Natural anodized according to EN 123731: 2001.
• Lacquered with a wide range of colors in accordance with the “QUALICOAT” instructions.
• UNICITY HI is also available in F2J lacquers and exclusive colors for an elegant and contemporary look.
