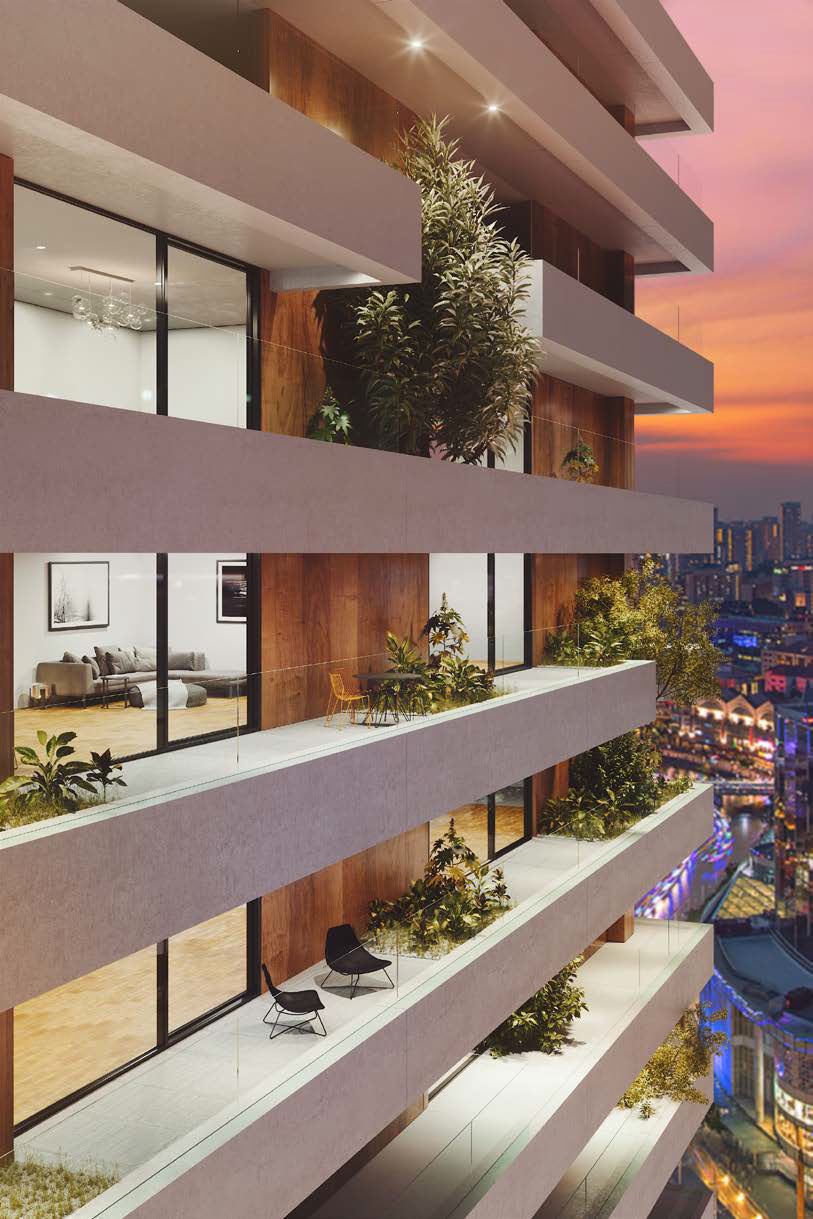

The world population is urbanizing… in 2050, it is estimated that 70% of people live in cities. This phenomenon will lead to an increase in health costs and noise disturbances. What will translate into the verticalization of buildings, mixing accommodation, sports facilities, offices, etc. Increasingly taller, spaces should offer new, optimized, bright and peaceful living spaces. By allowing large openings with sliding leaves, TIGAL thus preserves the entire living area, extending it to the terraces. The superior acoustic performance and the amplitude of the light span it provides contribute to improving the quality of interior life.

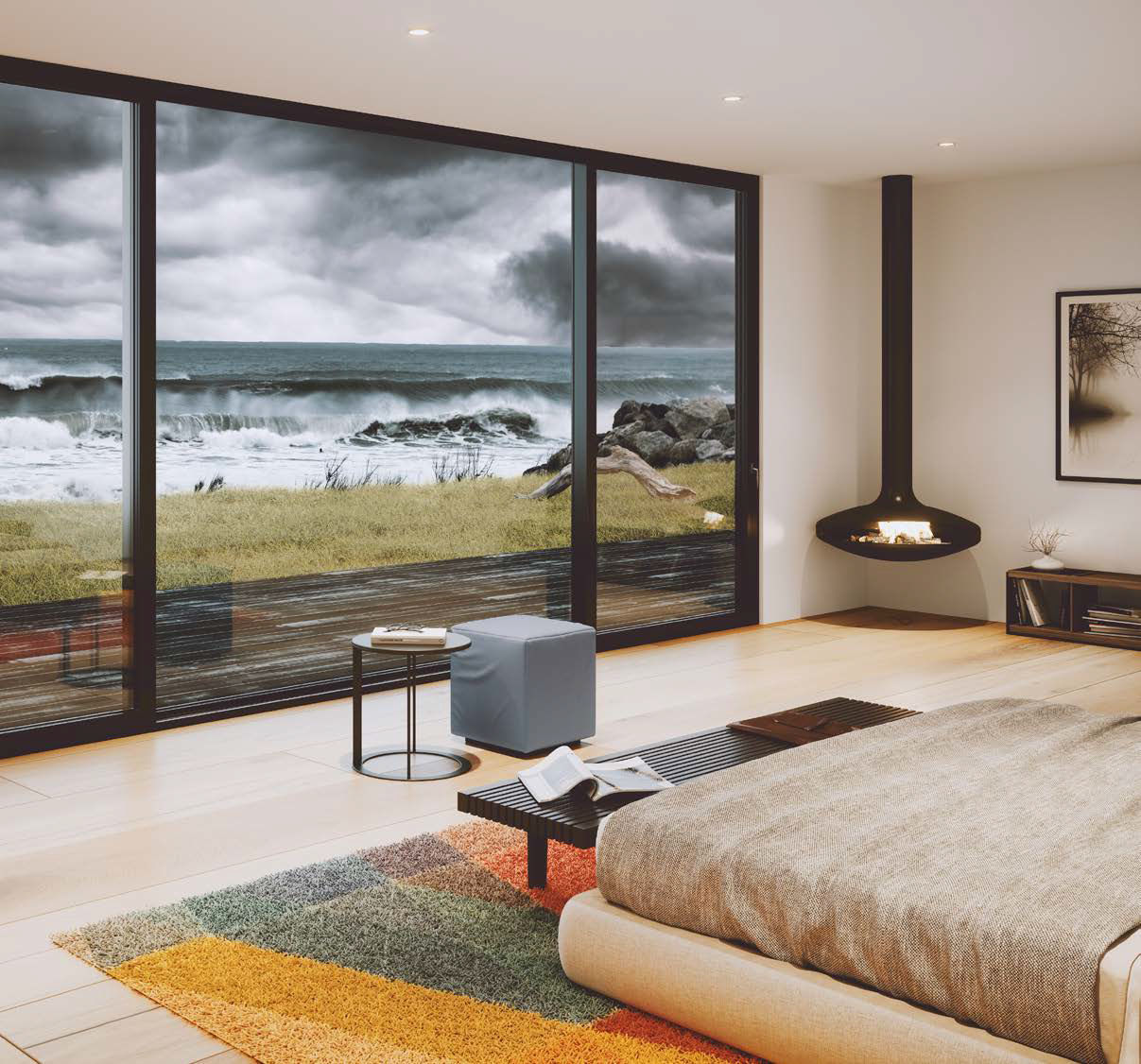

In parallel with this urbanization process, the planet reveals numerous climate changes and buildings are increasingly exposed to the elements.
TIGAL is a hybrid solution, combining the benefits of sliding systems with the performance of casement windows. The patented central sealing system guarantees exceptional water-tight performance, up to 4 times that of conventional sliding windows.
With its high thermal and sealing performance, TIGAL reveals attributes to resist the increased risks and face the elements in the most exposed situations.
Consistent with its DNA, Technal paid special attention to TIGAL’s design, associating clean lines with hidden hardware, ensuring a very balanced aesthetic and functional result.
Designed to allow great comfort of use, TIGAL also innovates through its safe microventilation system and offers smooth and quiet operation. The principles of responsible design and development made it possible to opt for 70% recyclable materials and long-lasting components.
The profiles are extruded in 4.0 aluminum (ecological footprint less than 4Kg CO² / Kg of aluminum).
MODERN AND ELEGANT LINES
• Product tested at ENSATEC according to UNE-EN ISO 10077.1: 2000 standards.
• Aluminum hardware.
• Drainage not apparent for a careful exterior aesthetic.
• Filling up to 42 mm.
UNICITY HI
Both its aesthetics as well as its acoustic and thermal performance, Unicity is one of the best options for urban rehabilitation.
INNOVATIONS
• Window kinematics: opening by 6 mm inward and translation of the sheets in parallel with the fixed part
• Hybrid system with multipoint perimeter closure and patented sealing system
LARGE DIMENSIONS
• Height (H): 2.70 m and Width (L): 4 m (1 sheet + 1 fixed)
• Weight: up to 300kg per sheet
• Filling thickness up to 52mm
DESIGN
• Visible or hidden sheet
• Hidden hardware
• Hidden drainage
COMFORT OF USE AND ACCESSIBILITY
• Microventilation:
·· 6mm sheet offset
·· Lock in safety position
• Built-in threshold:
·· Height: 15 mm (PMR)
·· Preserved performance
• Maneuvering force: Class 1
ACOUSTIC BENEFITS ADAPTED TO THE URBAN ENVIRONMENT
• Excellent noise barrier up to:
Rw (C;Ctr): 45 dB (RA, Tr) of sound attenuation
Double Glass 50 mm : 88.2 Si / 20 / 66.2 Si
PERFORMANCES
Application with or without rupture of the thermal bridge
• Thermal:
·· Uw : 0.85 W/m²K (Ug: 0.5 W/m²K ), triple glass, Tlw = 0.63, Sw = 0.51
1 sheet + fixed, L x H = 2.30 x 2.18
• Tightness:
·· Air permeability: Classe A4
Microventilation: Classe A1
·· Water tight: E1200
·· Wind resistance: Classe 3
Working pressure: 1200 Pa
Safety pressure: 1800 Pa
Class 5 up to 3000 Pa (available late 2019)
SOFTWARE
Available in TechDesign, Tech3D and TechAcoustic
A wide variety of finishes are available to meet the requirements of individual projects, add to existing buildings and provide additional design freedom for architects and designers:
• Natural anodized according to EN 123731: 2001.
• Lacquered with a wide range of colors in accordance with the “QUALICOAT” instructions.
• UNICITY HI is also available in F2J lacquers and exclusive colors for an elegant and contemporary look.
