RIGHT AND MODERN LINES
• Thin and discreet lines that contribute to the high performance of the window, favoring natural light (very small visible aluminum surfaces: 103 mm at the periphery, 33 mm at the central posts and 136 mm at the meeting of the 4 leaves).
• SOLEAL 65 offers an even more evident finesse, particularly in the lateral uprights, with only 88 mm of visible mass (33 mm in the central uprights and 136 mm in the central backrest 4 leaves).
• Design worked until hidden drainage is obtained for all applications.
• Minimalist aesthetic reinforcement blades with the possibility of receiving a decorative profile (Technal patent) with polished anodized finish.

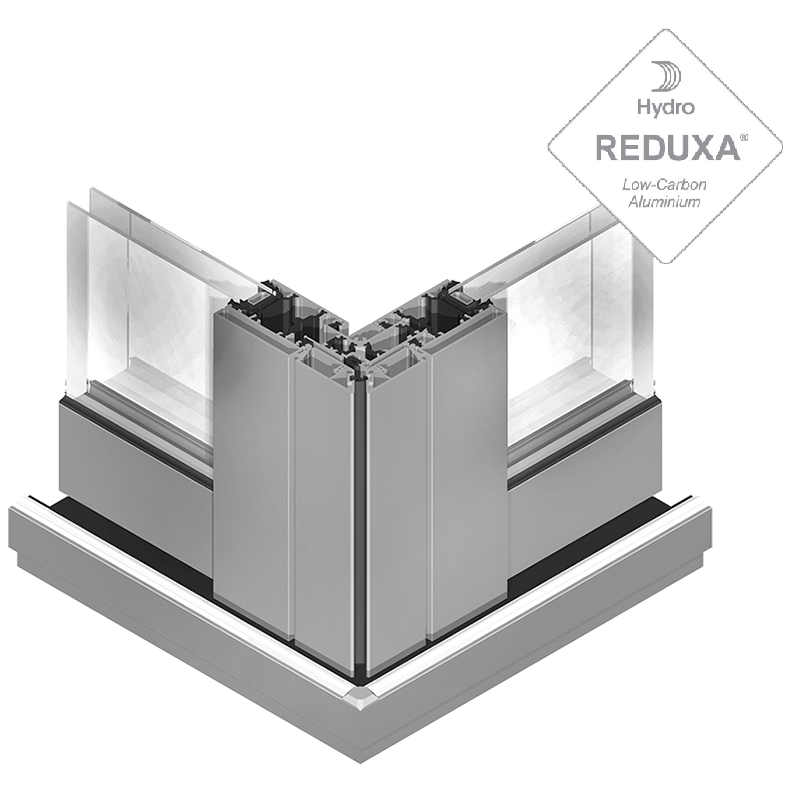

• The sliding angle window offers a finished and elegant look thanks to the reduced volume of the 120 x 120 mm angle and allows for large dimensions, reaching from floor to ceiling.
EXTENSIVE OFFER
• Frame of 2, 3 and 4 rails with and without grooves for finishing profiles, joints, etc. and with a 20 mm thermal bridge break.
• Specific rings
·· For renovation, front placement.
·· For new work with integrated joint cover.
·· For banded frames.
·· For integration in composite frames.
SEALING PERFORMANCES
• Optimized air permeability thanks to the treatment of sensitive areas to meet the ECR (Low Consumption Buildings) criteria in all applications, both in collective buildings and in individual dwellings. Values obtained: 0.19m3 / h.m2) * at a pressure of 100 Pa.
* Frame 2 sheets: dimensions 3.0 m, x 2.5 m.
THERMAL PERFORMANCES
• Optimized thermal loss values Base version in 55mm module: Uw up to 1.4W / m2.oK, Sw: 0.45 and TLw: 0.59 *
*These values with 1.0W / m2.oK double glass and insulating interlayer Dimensions: 4.3m x 2.6m
