ALUMINUM

Soleal PY

A complete offer

A multiple choice of solutions

The 55 and 65 mm deep modules allow the creation of doors and sets with thermal bridge rupture, ideal for all constructions, whether in the tertiary sector or for individual habituation.
Equipped with great versatility, the doors are compatible with compositions from the Technal offer. Installation details are common for casement and sliding windows as well as SOLEAL bay windows.
SOLEAL doors, thermally insulated, with or without PMR sill, can be made with a single profile sheet or with a high lower cross member (120 mm face visible in version 55 mm and 166 mm in version 65).

Fine design and accumulated performances

With straight and sober lines, SOLEAL doors offer reduced and balanced aluminum views for an elegant look.
The SOLEAL 55 offer proposes 3 concepts for your projects: single action door, with hinge, swing door with pivot and door with anti-pinch tube.
The SOLEAL 65 door responds to market expectations with large dimensions up to 3 m high, as well as with heavy weights, up to 180 kg per sheet with 3-body hinges.

Ask a Budget
SKU: SOLEAL PY - Technal Categories: , Product ID: 1949

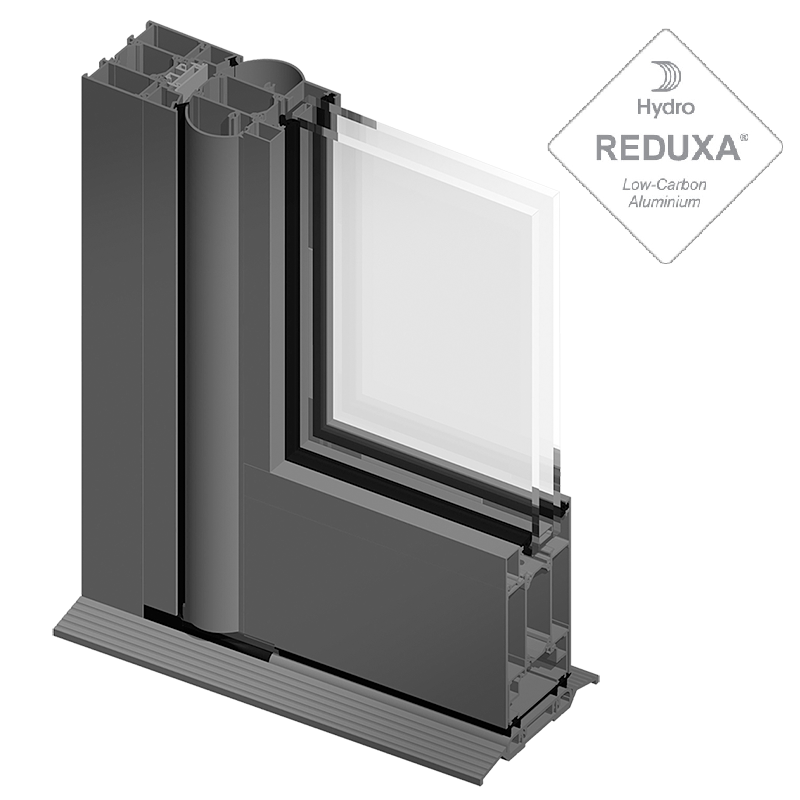

TUBE DOOR

The Tube door is available in simple action and comes with level 1 and level 2 anti-entrapment.
The Tube version is ideal for public buildings such as schools, restaurants, theaters, where anti-entrapment protection is a priority. A double hardness joint on the stopper maintains a gap of 23mm between aluminum profiles.

SIMPLE ACTION TUBE
• As an option, the hinged profile can be used on the top crosspiece of the leaf, ensuring the simple action of the door. This profile can be installed regardless of the interior and exterior opening, giving the sense of openness.

ANTI-CHANNEL TUBE
• Optionally, the hidden spring can be used with this anti-pinch application, allowing automatic closing.

VAI-VEM TUBE

VAI-VEM ON PIVOT
The swing door allows simultaneous or independent opening of each leaf to the interior or exterior.
The 8 mm spaces between the movable and the fixed sheets are filled with plush.
• Optionally, this application can use a floor spring or a hidden arm spring on the upper cross member.
• Adaptable with level 2 anti-entrapment.

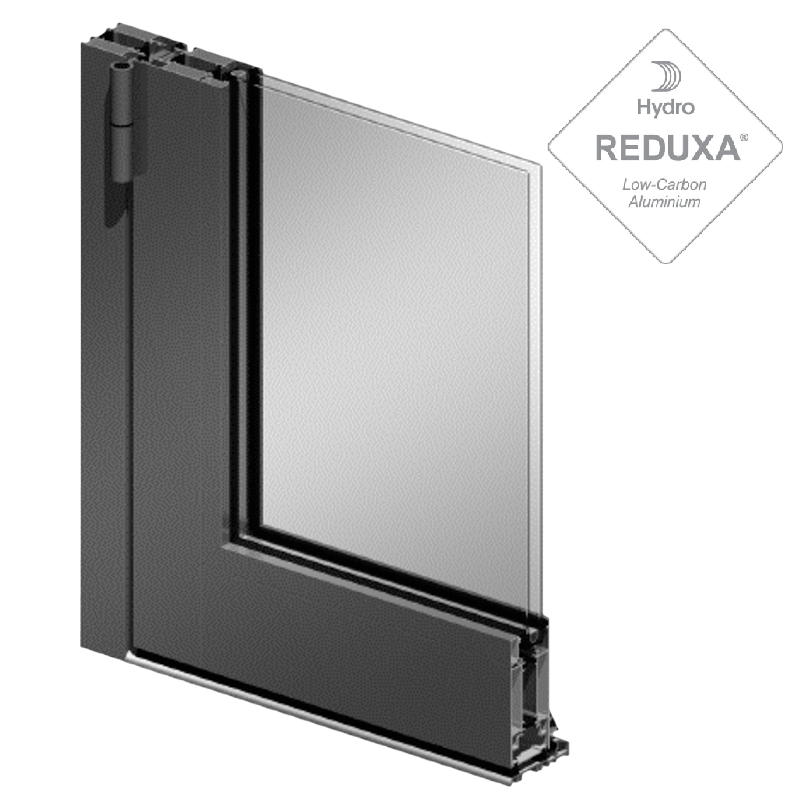

SIMPLE ACTION WITH HINGE
Applications:
• Simple action
• Reinforced simple action

Example for single action door with hinge.

MULTIPLE APPLICATIONS
• 1 and 2 sheets, inner opening
• 1 and 2 sheets, outer opening
• Possibility of compound spans (door with fixed side or flag)
• Integration on the GEODE and SPINAL façades.

PERFORMANCES
• Thermal performance for single leaf door (L x H 1.25 x 2.18 m):
·· Uw = 1.4 W / m2.K with TLw = 0.51 and Sw = 0.38 (Ug double glass = 0.5 W / m2.K)
·· Uw = 1.0 W / m2.K with TLw = 0.52 and Sw = 0.40 (Ug triple glass = 0.5 W / m2.K)
• Filling up to 52 mm
• Maximum weight per sheet: up to 180 kg with 3-body hinge
• Maximum dimensions per leaf, hinged door and PMR sill (L x H = 1.4 x 3 m)
• Intensive use door, class 8 (tests in progress at 1 million cycles)
• A.E.V. Performances (Air, Water, Wind)
65 mm door, 1 hinged inner leaf and PMR sill (H x W = 2.5 x 1.2 m):
·· Air permeability: Class 4
·· Water tight: class 7A
·· Wind pressure resistance: Class C5

DESIGN
• Sober and straight lines, with reduced and balanced views, for a clean look
• Technal exclusive design door handle
• Hidden drainage in the upper, lower and intermediate crossbars
• Slimness of the hinge. 20 mm side view of the 2 and 3 body hinges.

ACCESSIBILITY AND FACILITY
• PMR sill adapted for easy access in all options
• Integrated door spring: retention at 90º
• Residential and commercial environments.

LOCKS AND SECURITY
• Possibility of 1 or 3 point lock
• Adjustable gache to facilitate closing
• Free gouache for greater long-term closing efficiency
• Burglary resistance: resistance class level 3 according to EN 1627-30, in progress with a 5-point lock

A wide variety of finishes are available to meet the requirements of individual projects, add to existing buildings and provide additional design freedom for architects and designers:

• Anodized in accordance with the “QUALANOD” quality mark.
• Lacquered with a wide range of colors in accordance with the “QUALICOAT” instructions.
• ARTYAL is also available in lacquers and exclusive F2J colors for an elegant and contemporary look.
