SlimPateo

Panoramic view and comfort

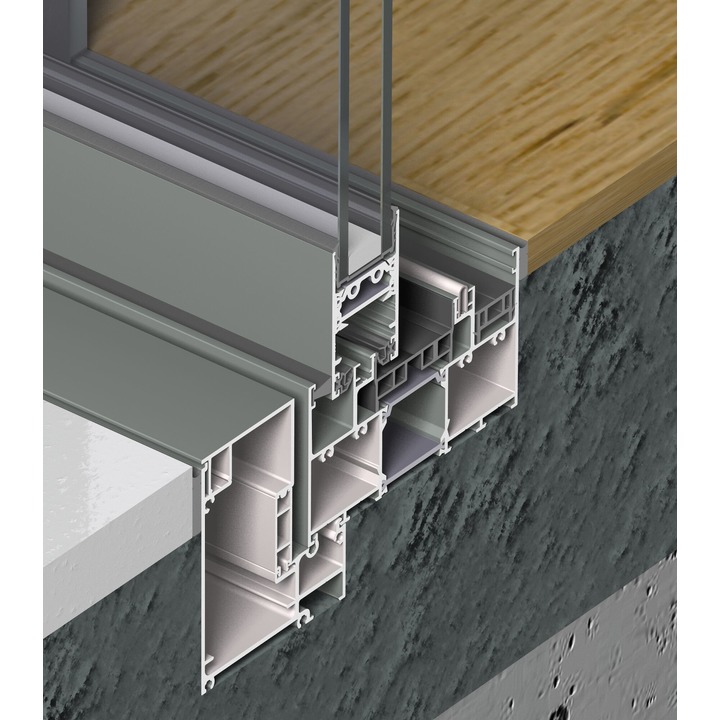

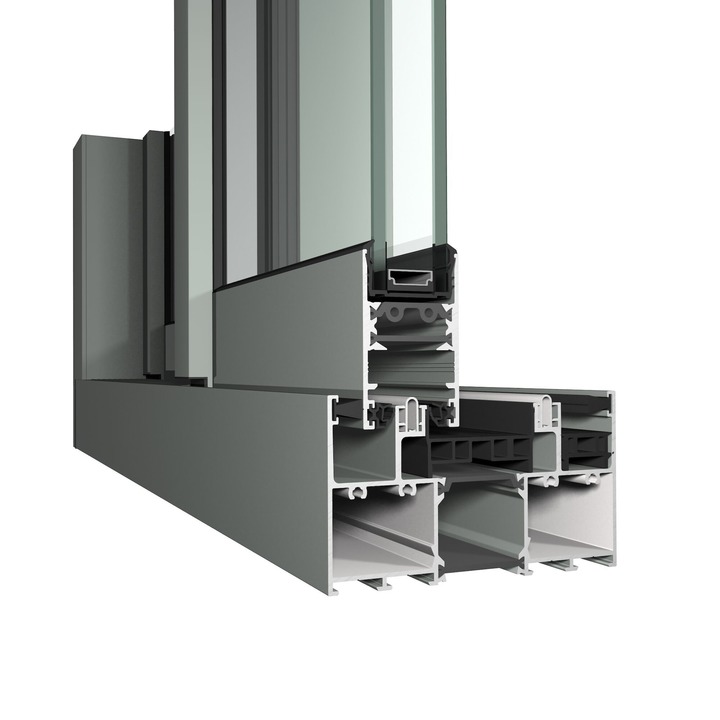

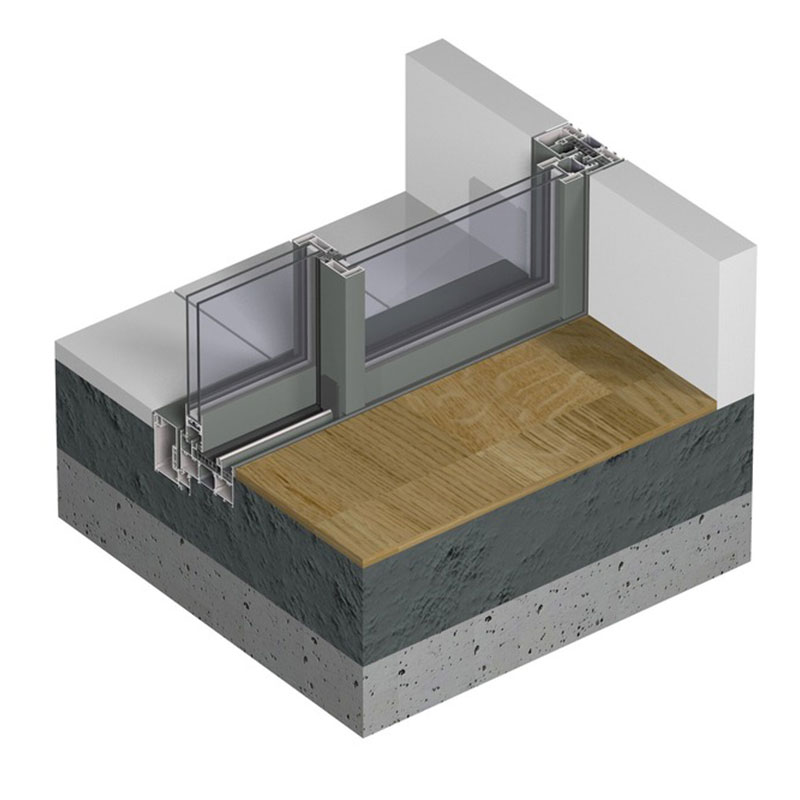

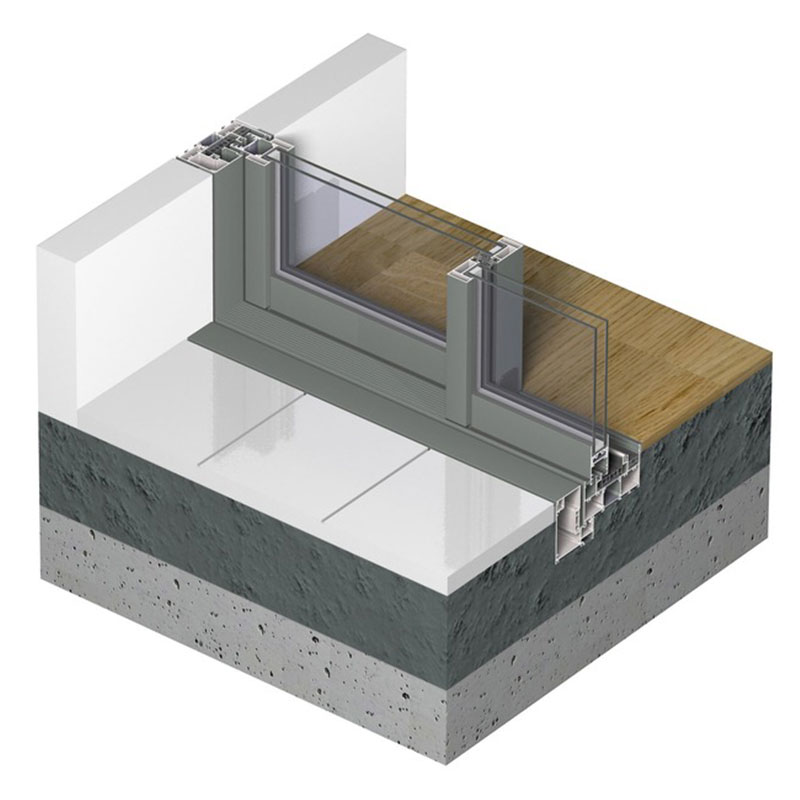

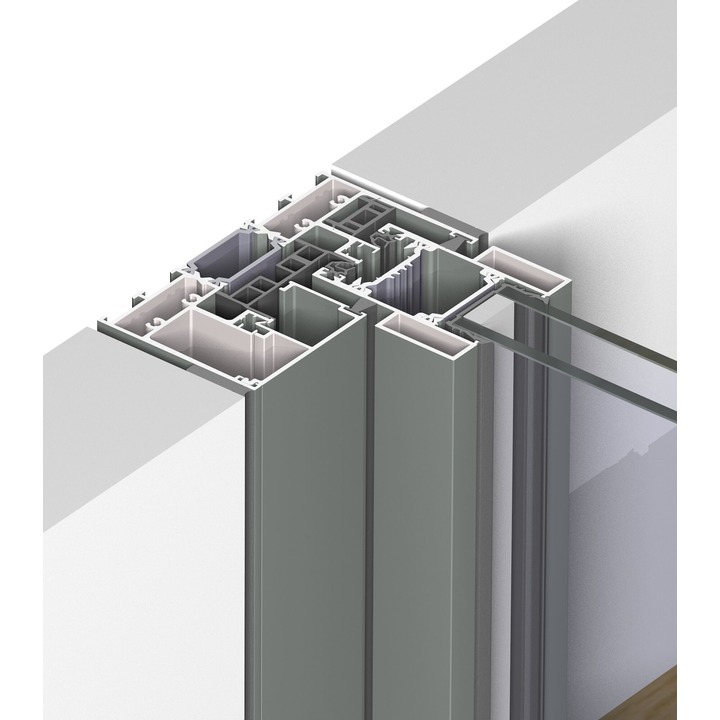

SlimPatio is a high insulation sliding system, with thin profiles and concealed rim that combines comfort and elegance.

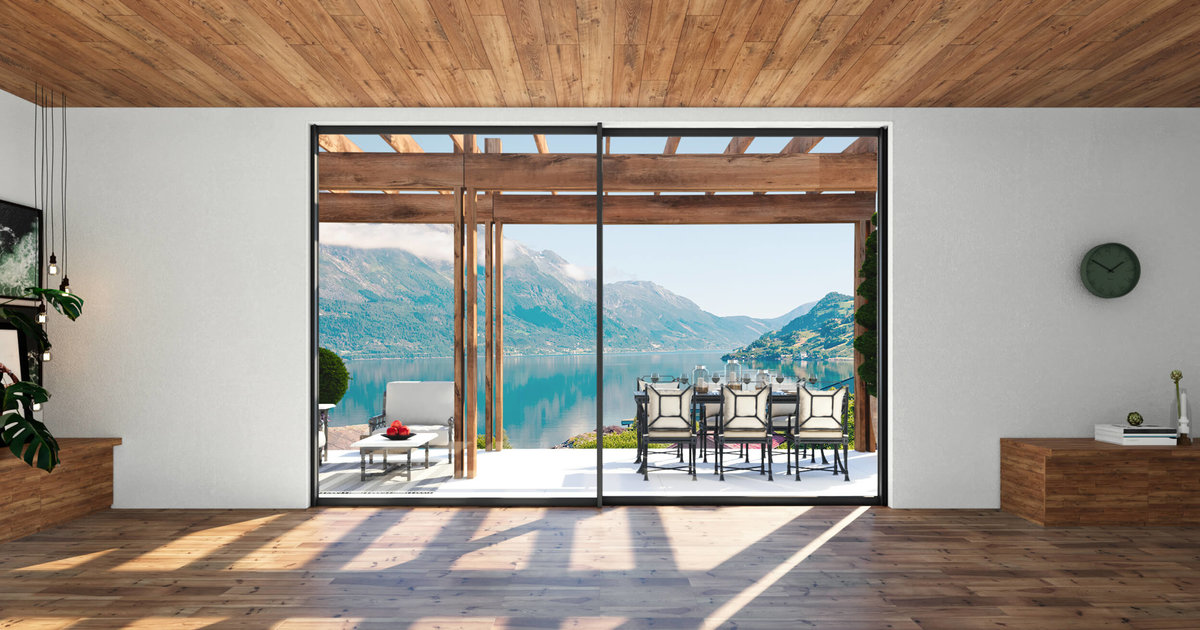

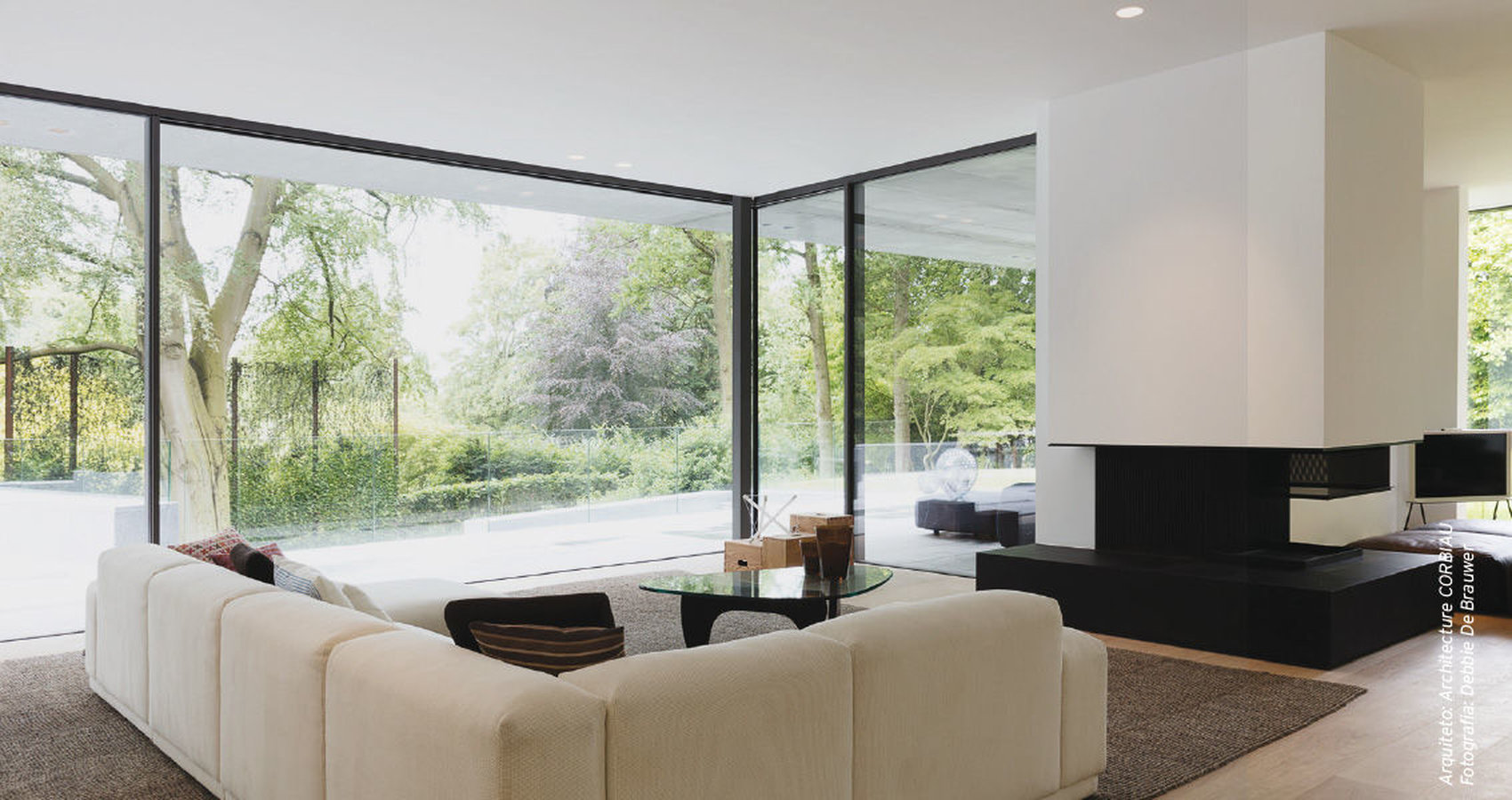

Thanks to its ultra-thin design, this system allows maximum natural light to enter, while providing excellent panoramic views.
Innovative integrated technologies guarantee the best performance in terms of thermal insulation, wind and water tightness, effectively meeting high standards.

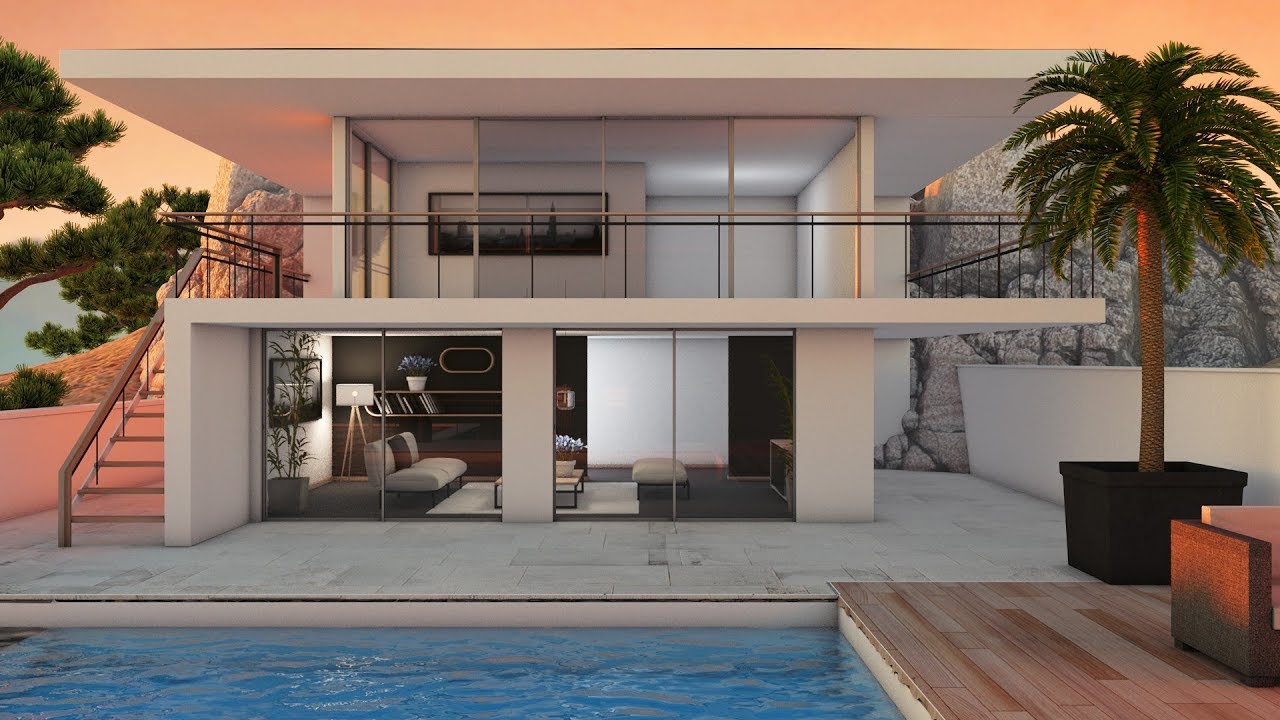

The SlimPatio sliding system offers the design freedom necessary to create contemporary spaces, where maximum light and comfort are harmoniously combined.

SKU: SlimPateo - Reynaers Categories: , Product ID: 2128

Visible hitch width: 34 mm
Maximum sheet height: 2500 mm
Overall rim depth: 120 mm
Overall sheet depth: 64 mm
Bite height: 18 mm
Minimum glass thickness: 24 mm
Maximum glass thickness: 36 mm

Comfort

  • Air permeability, max. test: 4 (600 Pa)
  • Water tightness: 8A (450 Pa)
  • Wind load resistance: B5 (2000 Pa)
  • Acoustic performance: Rw (C; Ctr) = 35 (-2;-4) dB / 40 (-2;-4) dB, depending on glazing type dB dB

Energy

  • Thermal insulation (Uf): 2.4 W/m²K
