Minimum rim view: inner opening: 38.5 mm
Minimum leaf-rim view: inner opening: 72 mm
Minimum rim view: outside opening: 19.5 mm
Minimum leaf-rim view: outer opening: 80 mm

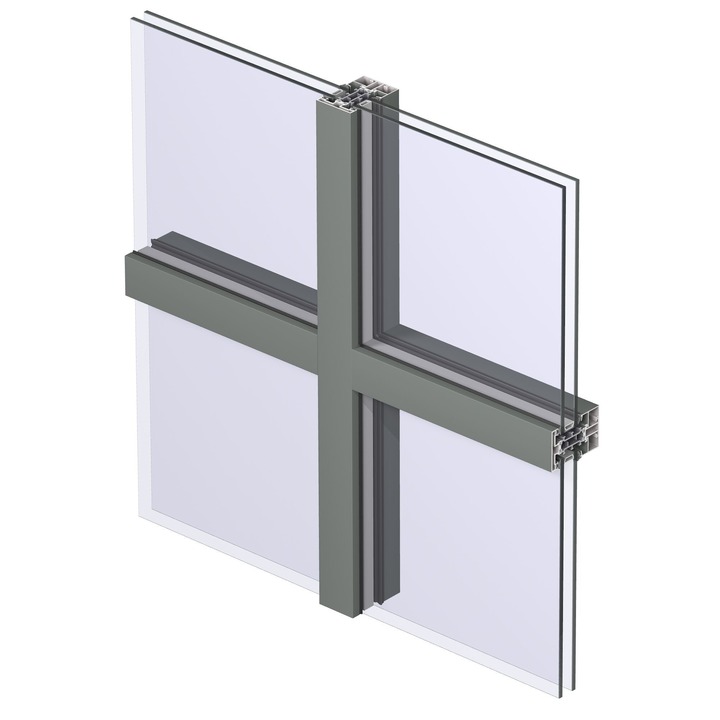

Minimum cross-section profile view: 48 mm
Maximum sheet height: 2800 mm
Minimum sheet height: 1200 mm
Maximum element weight: 170 kg
Overall rim depth: 76 mm
Overall sheet depth: 86 mm
Bite height: 13.5 mm
Minimum glass thickness: 16 mm
Maximum glass thickness: 55 mm
Minimum glass thickness – sheet: 4 mm
Maximum glass thickness – sheet: 55 mm
Sealing method: Dry glazing with EPDM or neutral silicones
Thermal break: Fibreglass Reinforced Polyamide Strips
ALUMINUM
SL38 Ferro
Light, elegance and comfort

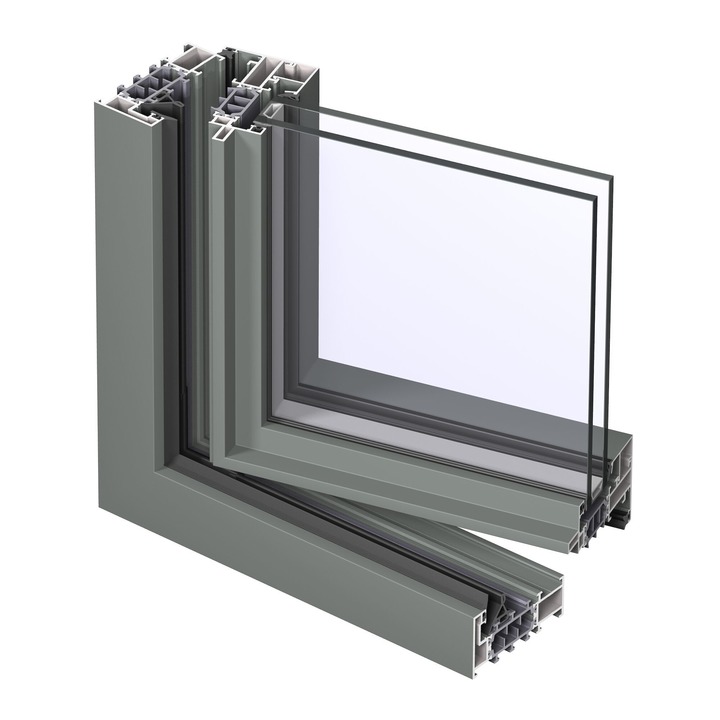

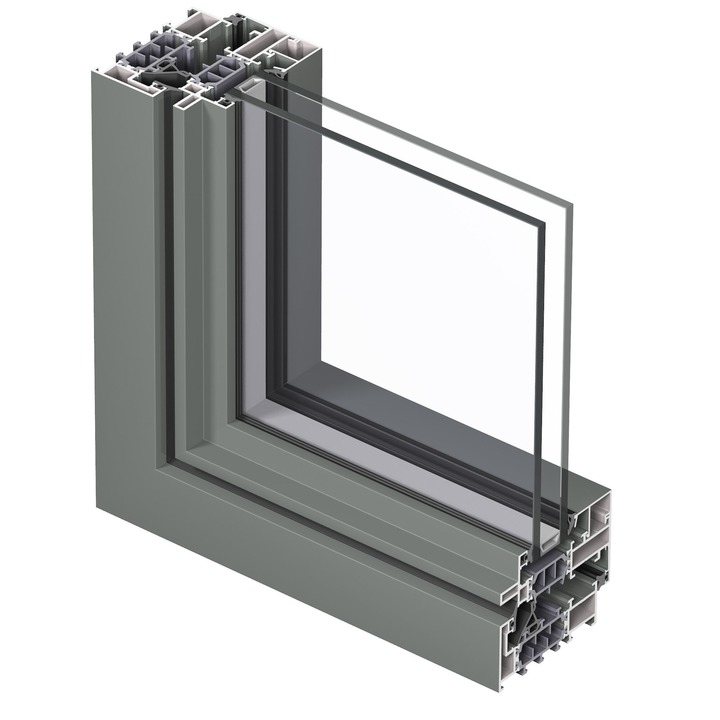

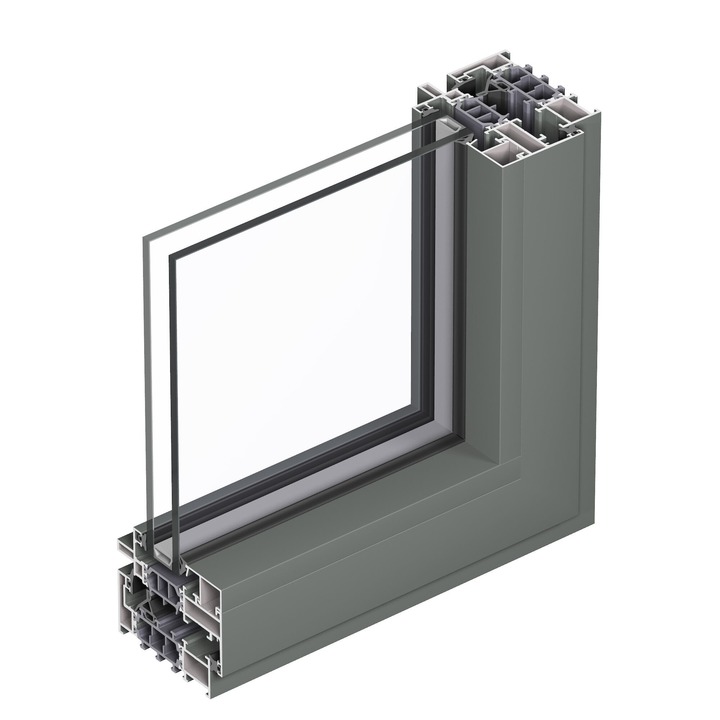

SL38 is a highly insulated system for windows and doors opening inside and outside that combines elegance and comfort, with a unique design.

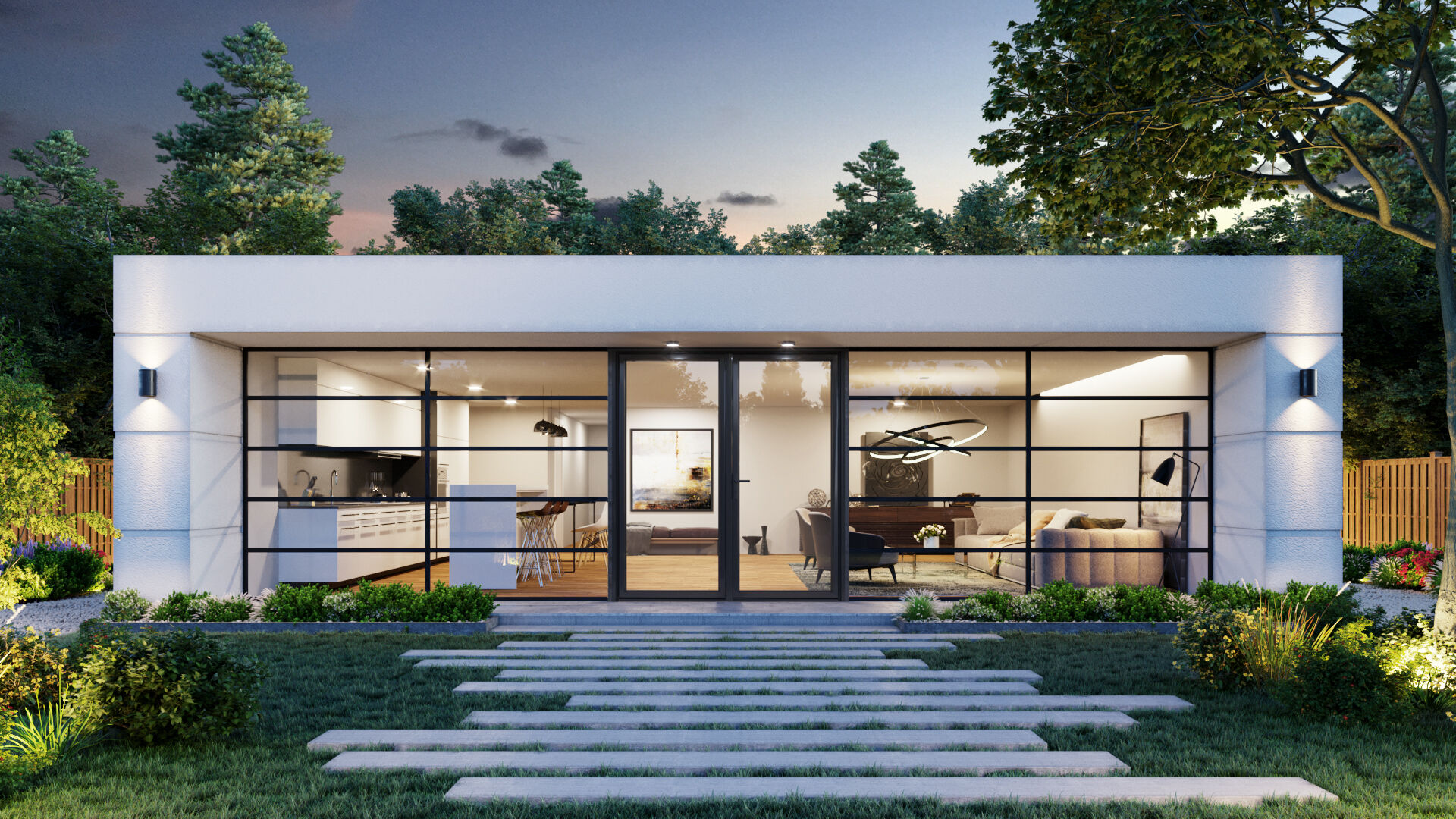

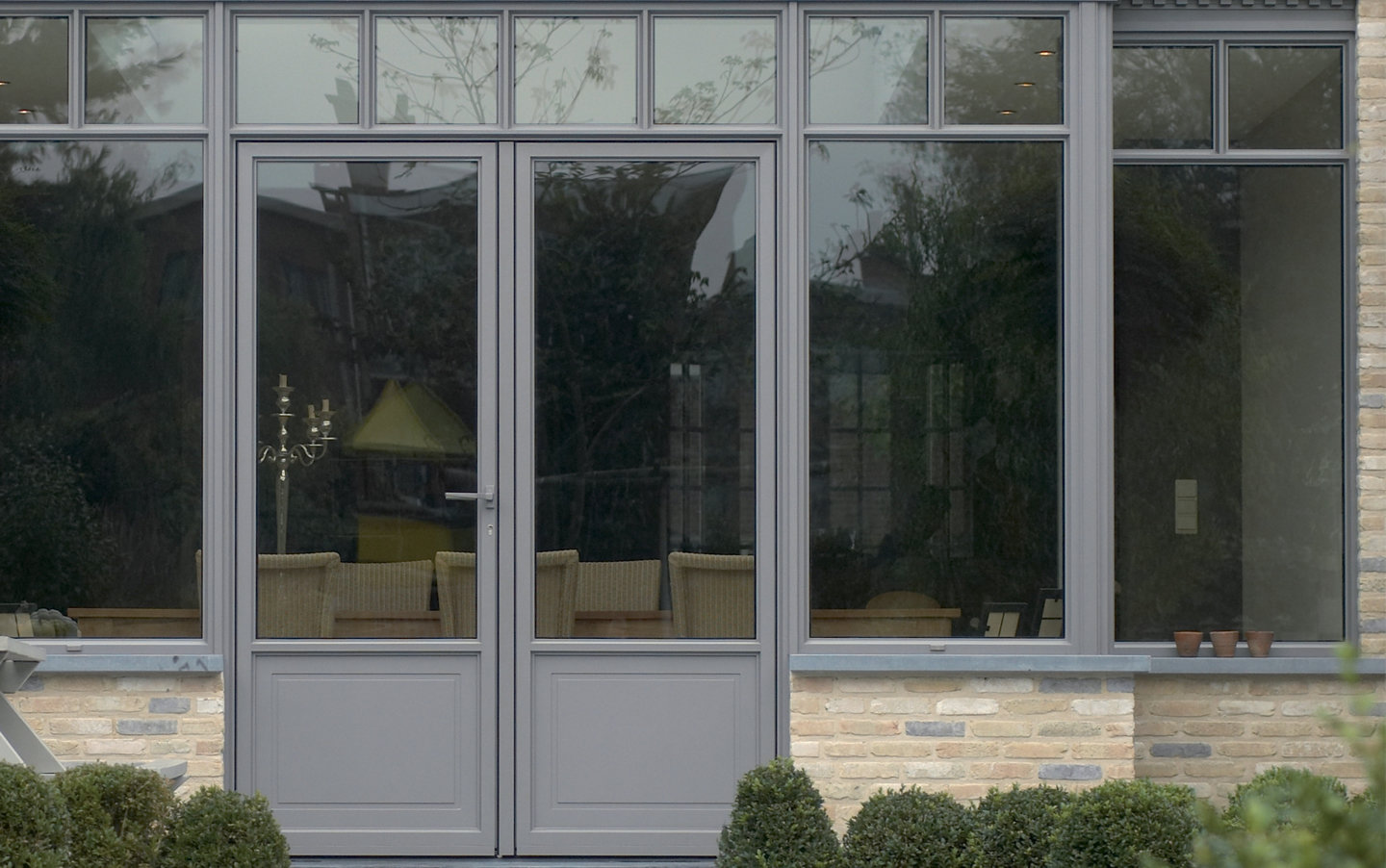

The minimalist steel appearance is perfect for modern architecture and renovation, respecting the original design of the building but offering a thermally superior solution.
The windows and doors can be supplied with double and triple glazing, without compromising the ultra-thin style.
In addition to superior performance, the system offers a perfect combination of design, strength and flexibility to meet the most demanding architectural challenges.
Comfort
- Air permeability, max. test: 4 (600 Pa)
- Water tightness: 9A (600 Pa)
- Wind load resistance: C3 (1200 Pa)
- Acoustic performance: 45 dB
Safety
- Intrusion resistance: RC2/WK2
Energy
- Thermal insulation (Uf): 1,9 W/m²K
