ALUMINUM

Lumeal

The Minimal Sliding Window

Performance-enhancing design
  • Large dimensions
  • Diversity of applications
  • High performance

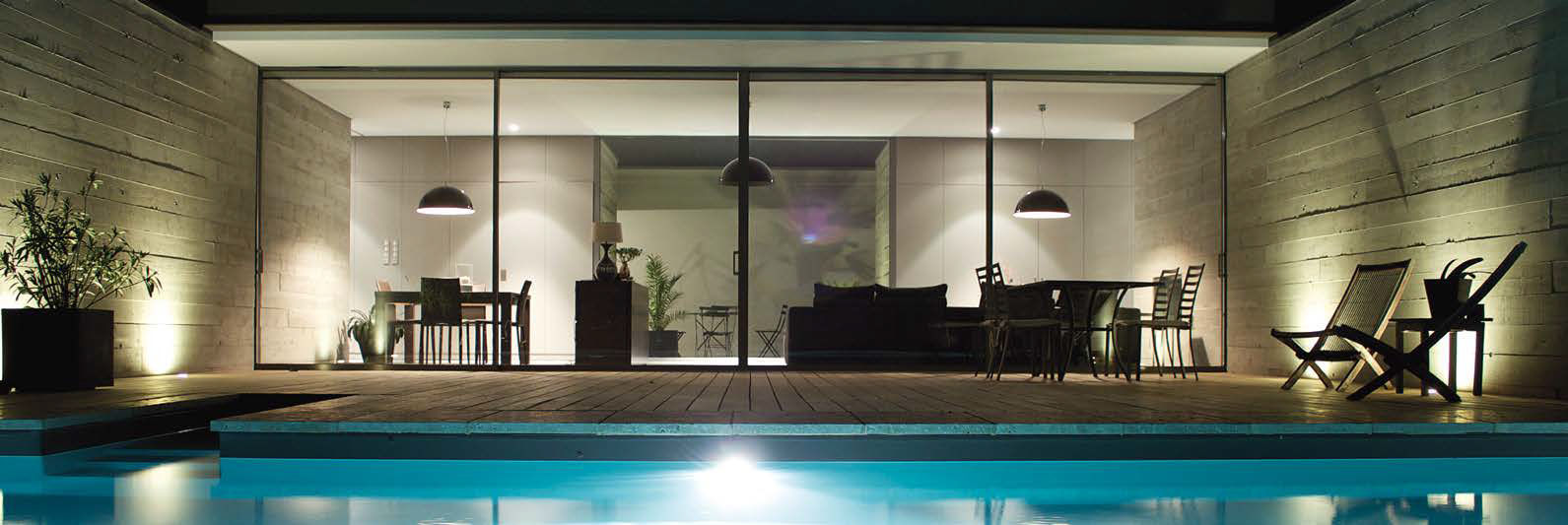

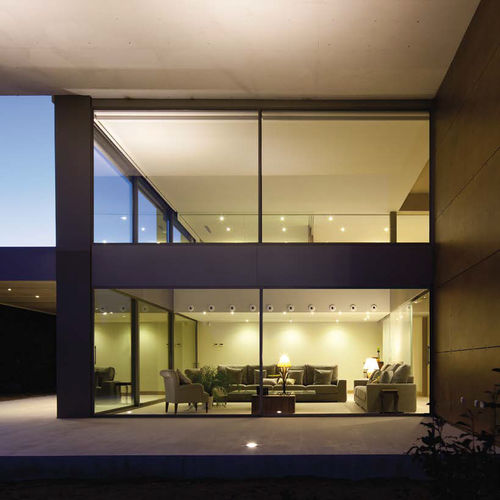

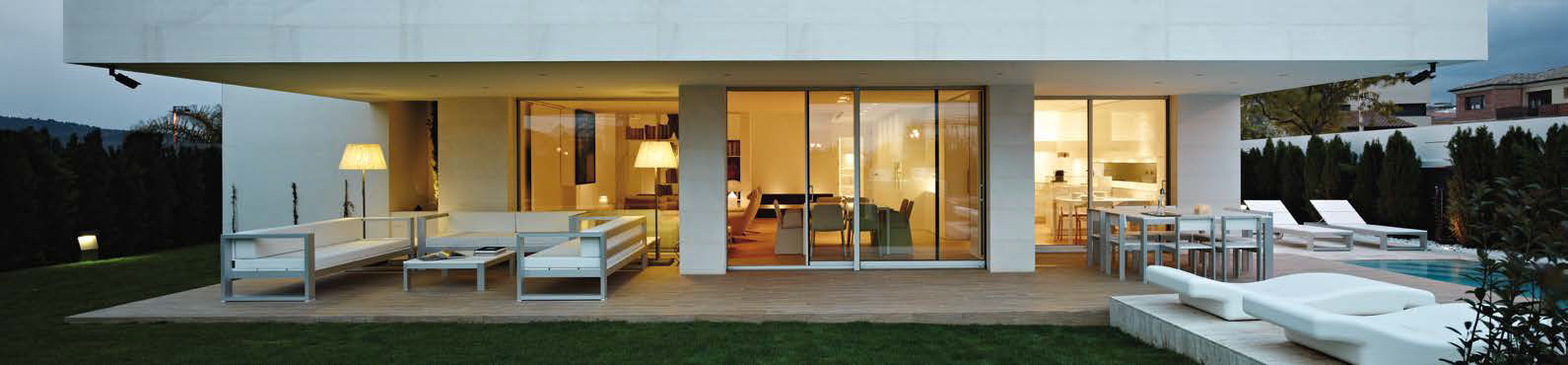

With a 100 mm module, LUMEAL Minimal, is a sliding window with hidden leaf, with a minimalist line.
This minimum view of aluminum guarantees a gain between 8 and 14% of the glazed surface, depending on the application.
LUMEAL Minimal allows different opening configurations, in the fixed and mobile part configuration, associated with a reduced central view.

Ask a Budget
SKU: LUMEAL - Technal Categories: , Product ID: 1924

AN EXCLUSIVE DESIGN

Aesthetics and performance placed at the service of well-being, with minimalist lines and an exclusive design.

The design that optimizes natural light. The window frames are distinguished by simple and clean lines without overlapping profiles and hidden drainage. The straight cut connection principle contributes to the purity of the work.

The “hidden leaf” principle represents a greater aesthetic advantage: with only 68 mm of aluminum view it allows to create a more attractive finish (compared to the 150 mm of a traditional sliding window), which increases the glazed surface more than 8%.

The exclusive design of the handles allows you to customize the sliding frame.

LARGE DIMENSIONS

• Maximum dimensions up to: W = 4.50 m H = 2.70 m
• Maximum weight per sheet: 300 kg

THERMAL PERFORMANCES

• Very low thermal conductivity TLw = 0.65
• Up to Uw = 1.2 W / m2.K and Sw = 0.65
Double glazing with Ug = 1.0 W / m2.K + interlayer insulation with dimensions L = 4.50m – H = 2.70 m

SEALING PERFORMANCES

Air permeability
• Very low losses, the perfect solution for energy efficient construction projects.
• Class 4 (1 sheet + fixed or 2 movable sheets: L = 3 m H = 2.50 m)

ACOUSTIC PERFORMANCES

• Sound attenuation equivalent to a casement window
• 1-leaf window door + fixed (L = 2.8m H = 2.2m) + fixed: RW 37 dB

DESIGN

• Reduced aluminum view (-35%), with only 68mm and 77mm visible
• Low thickness central profile
• Hidden drainage system for all applications

ACCESSIBILITY (PMR)

People with reduced mobility

• Device for easy access
• PMR sill profile equipped with ramp profile
• Motorization option to facilitate the opening and closing of large frames

CLOSES

• Handles with exclusive design, with simple closing system (1 point) or multi-point closing (2 or 3 points)

A wide variety of finishes are available to meet the requirements of individual projects, add to existing buildings and provide additional design freedom for architects and designers:

• Natural anodized according to EN 123731: 2001.
• Lacquered with a wide range of colors in accordance with the “QUALICOAT” instructions.
• LUMEAL is also available in lacquers and exclusive F2J colors for an elegant and contemporary look.

Click here to check the maintenance conditions for this product.
