F100 Safeglass

HomeProductsAluminumF100 Safeglass
ALUMINUM

F100 Safeglass

More glass and less aluminum

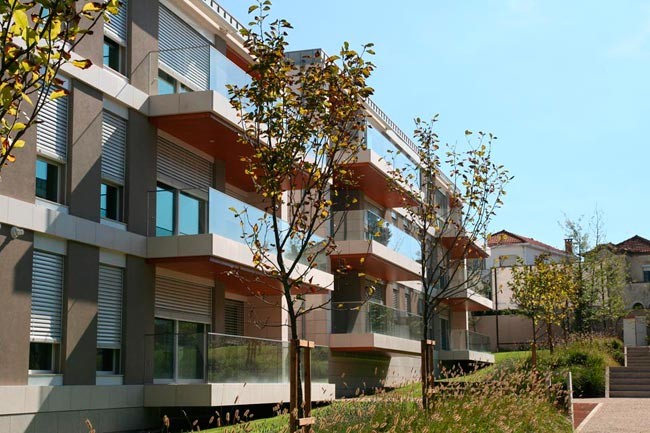

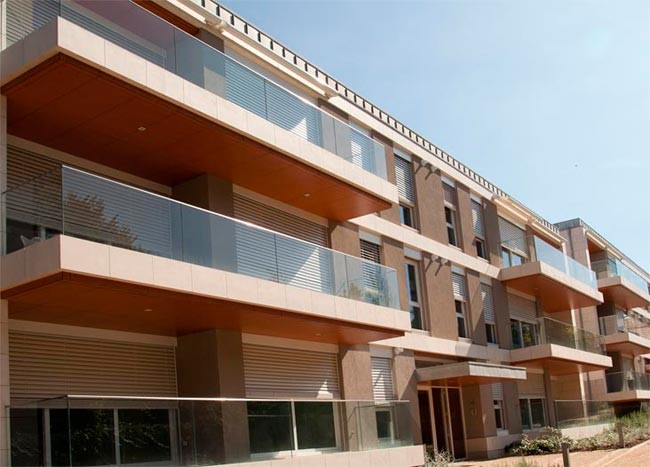

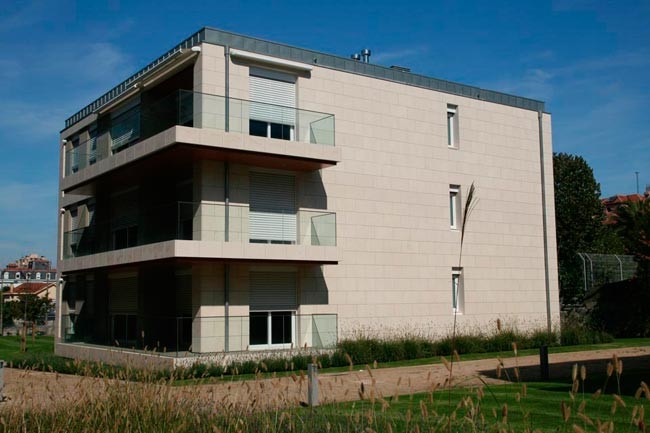

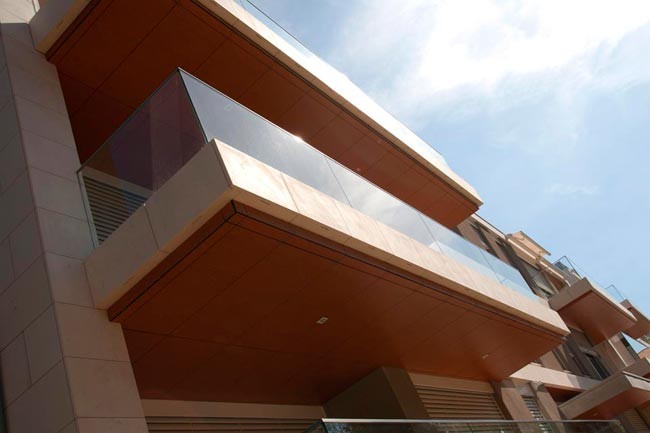

System designed for application in places of residential activity (residential buildings, hotel rooms and hospitals), provision of services (offices, restaurants, shops, etc.) and places of public reception (public access to buildings, commercial areas, among others) .
Complies with the Portuguese standard, NP 4491 2009, which defines the characteristics of the guards according to the type of use where they are applied, promoting the safety of users.

Glazing capacity

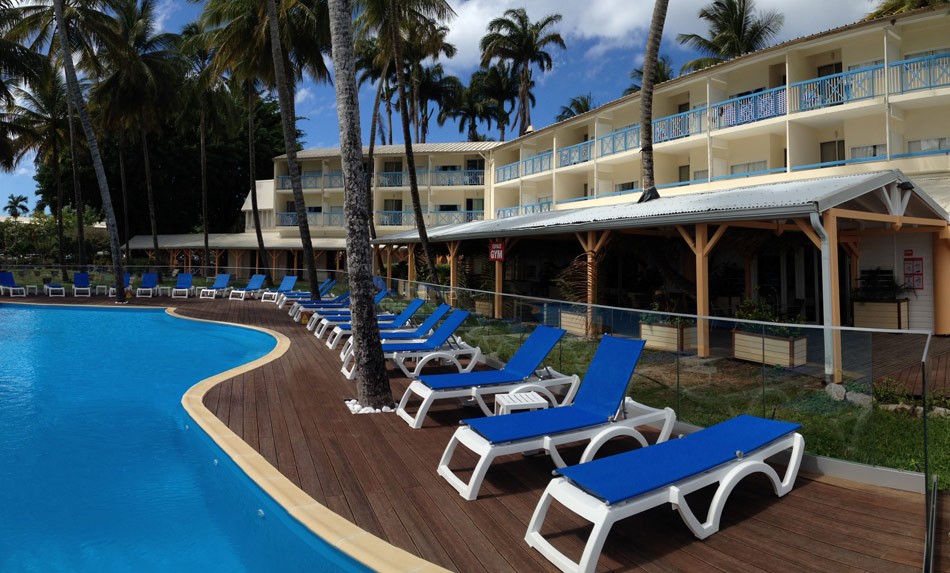

  • Perimeters for swimming pools: 12 mm glass;
  • Residential activity sites: 16 mm glass;
  • Service delivery locations: 18 mm glass;
  • Public reception places: 20 mm glass;
  • Crowd reception areas: 25.5 mm glass.

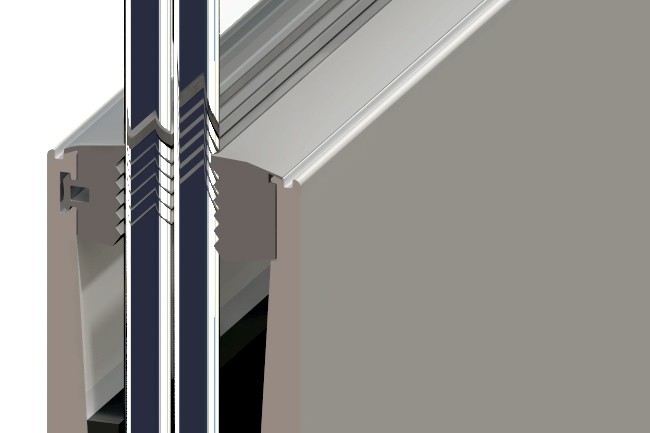

It is suggested to use laminated tempered glass, wedges / bushes in EPDM with high hardness (75/80 Shore A) and TPE seals in gray color.

Constructive solutions

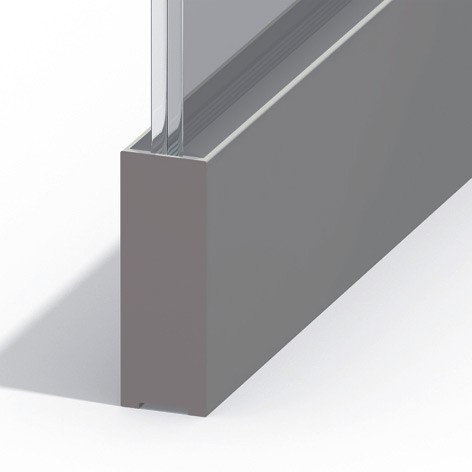

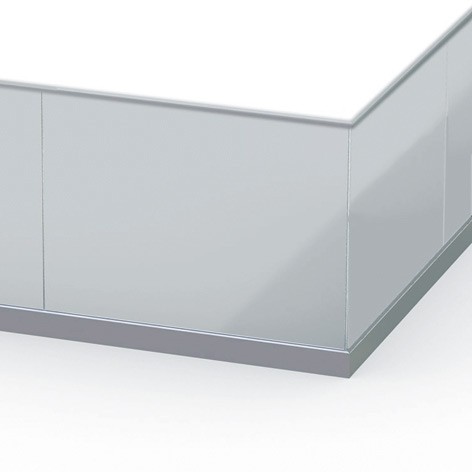

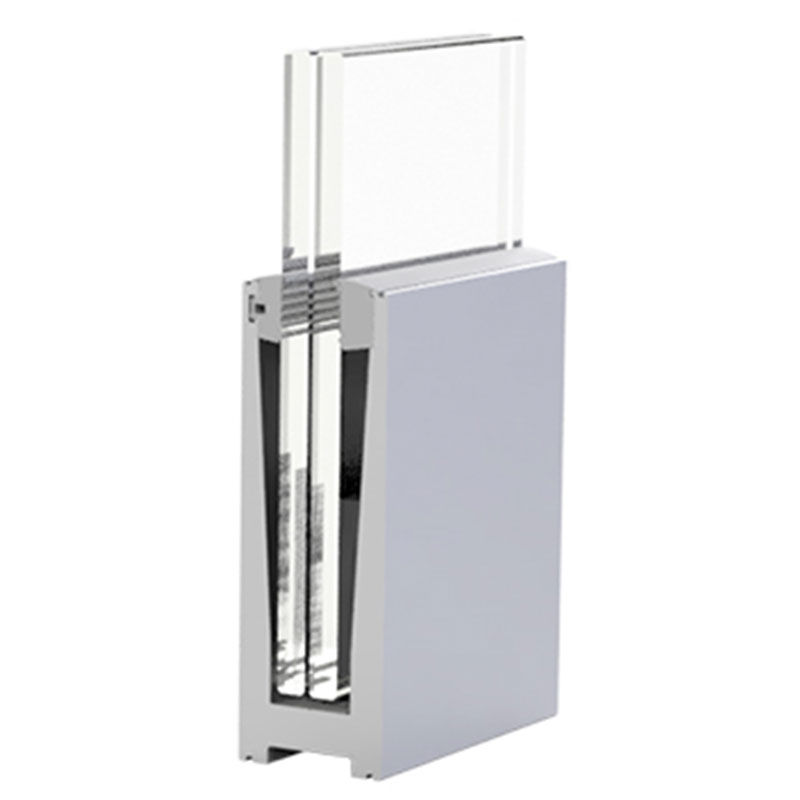

• Discreet aluminum base profile, 124 mm x 43 mm;
• Light aluminum handrail.

Ask a Budget
SKU: F100 Safeglass - Extrusal Category: Product ID: 1993

• Ease of assembly of the components;
• Fixation at the top, on the slab forehead or embedded in the floor;
• Height = 1100 mm (measurements different from those presented subject to consultation).

The base profile must be fixed to a concrete slab.
It is recommended that the FISCHER FH II M8x125 or a similar anchor be used as a minimum suitable anchor – taking into account the characteristics and specificities of each construction.
The maximum spacing between each anchorage must respect 200 mm.

Glass and Aluminum Bodyguards
It complies with the Portuguese Standard NP EN 4491-2009, which defines the characteristics of the guards according to the type of use of the places where they are installed, promoting the safety of the users, reducing the risk of falling outside the defended spaces.

Intended uses/Service force
NP 4491:2009 – Horizontal static force test
Residential activity sites: 0.5 kN / m (51 Kgf / m) ex. housing buildings, hotel / hospital rooms, etc …
Service delivery locations: 0.7 kN / m (71.4 Kgf / m) ex. offices, cafes, restaurants, shops, etc …
Public reception places: 1 kN / m (102 Kgf / m) ex. theaters, cinemas, conference rooms, public access
Crowd reception locations: 3 kN / m (306 Kgf / m) ex. stadiums, shopping centers, etc …

Permissible arrow, after cessation of the applied force, 3mm.
