The opening action is divided into two movements. Only after lifting the lower rim leaf can it be moved laterally. With this principle, dimensions of more than 3 meters of leaf opening can be achieved.
Thanks to its special fittings, this system stands out for the ease with which the sheet slides with a gentle push.

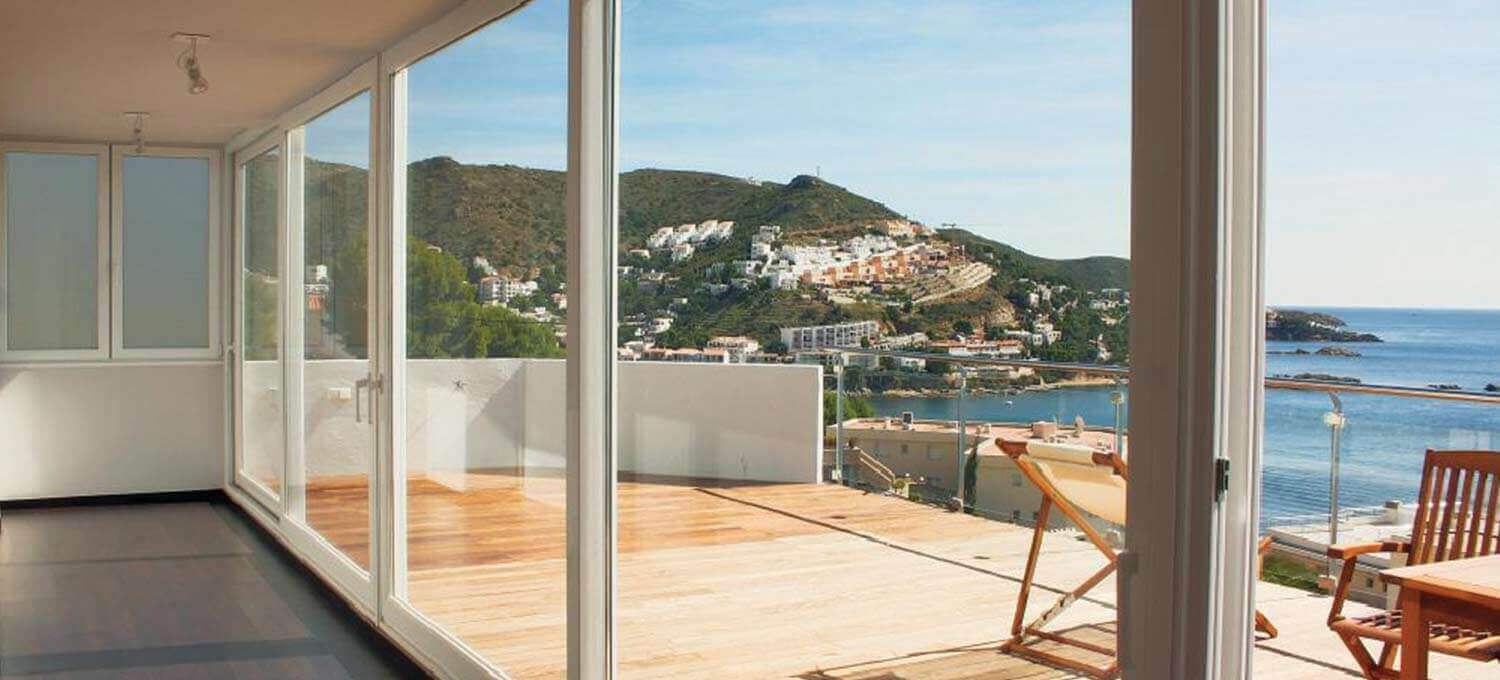

Have you ever thought of enjoying the views through a wall? With the HS76 you can make it a reality. It was specially designed for large spans, with 3 m maximum width leaves and a weight of 300 kg, which slide smoothly and effortlessly. It will be like incorporating the exterior into your home and enjoying high levels of thermal and acoustic insulation. And all of this without barriers, because it has three different thresholds.
Choose the one that best suits your needs, from 20 mm in height to allow the passage of wheelchairs.
THERMAL CLASSIFICATION
Thanks to high performance and quality, F2J’s PVC profile systems have achieved maximum energy insulation for all models, thus helping to solve one of the biggest problems in modern construction: environmental contamination, preserving the health of the inhabitants.
The increase in environmental awareness should make us choose, more and more, products that not only offer guaranteed performance but, in particular, respect the environment.
Many studies have highlighted the effective environmental sustainability of PVC profiles, also reinforced by the possibility of recovery at the end of their useful life, recycling them to produce new products.
For a building, having windows with low Uw transmission values means achieving less energy loss through the window, which translates into significant energy and money savings.
Therefore, PVC windows represent the best sustainable option, due to their combination of high performance and low environmental impact. Thanks to them, energy consumption for heating and cooling is reduced, and significant savings are achieved.
Whoever uses PVC windows contributes to the reduction of greenhouse gases, helping the planet itself.
SOUNDPROOFING The windows made with the Elevadora HS76 system protect you from the annoying outside noise.The acoustic attenuation achieved allows you to isolate your home, even in areas with high acoustic contamination such as the surroundings of an airport.
SPECIFICATIONS

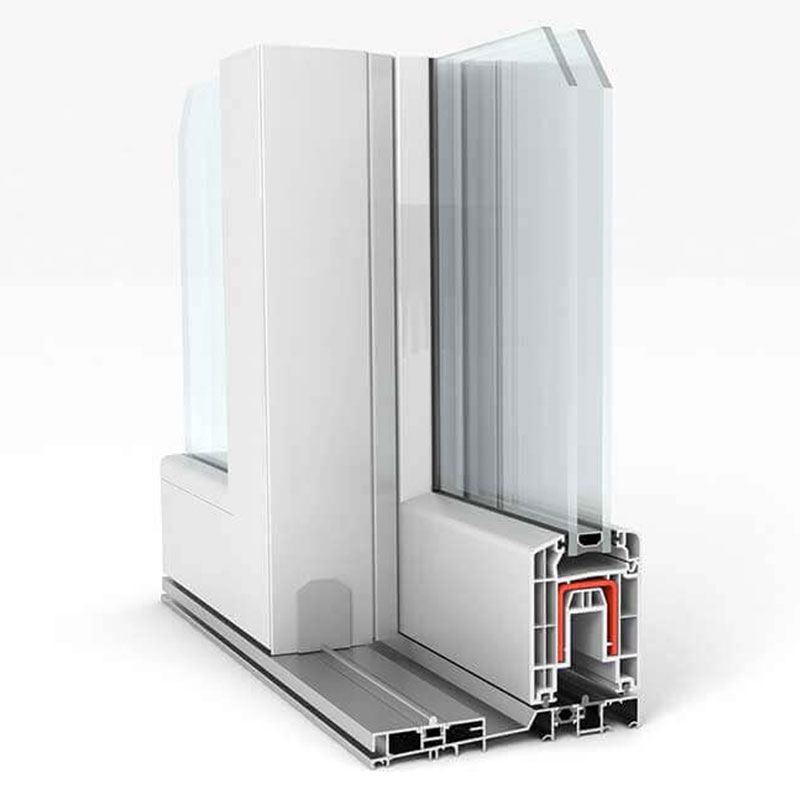

Sheet: 76 mm Rim: 175 mm Water tight: Class E1050 Air permeability: Class 4 Wind resistance: Class C5 Thermal insulation: Uf (W / m²K) = 1.20
Reinforcements: Steel in sheet and rim
Reference tests: 3000 x 2200 2 sheets
Finished and timeless colors
The color of your windows gives your home the character that lasts over time. Enjoy the lasting persistence of our colors, which adapt perfectly to all architectural styles.
With more than 45 available colors grouped into 5 finishing families, F2J offers you the widest range of aesthetic solutions to reflect your style in colors inspired by nature, in order to adapt perfectly to the needs of your facade, both outside and inside. And a long life cycle with a minimum of maintenance.
Wood finish – Nature with a minimum of maintenance
Metallic finish – Specially adapted for restorations
Minimal maintenance
PVC is a material very resistant to the action of atmospheric agents, which facilitates its maintenance. The color finishes are resistant over the years. Our varnishes reflect solar radiation instead of absorbing it.
