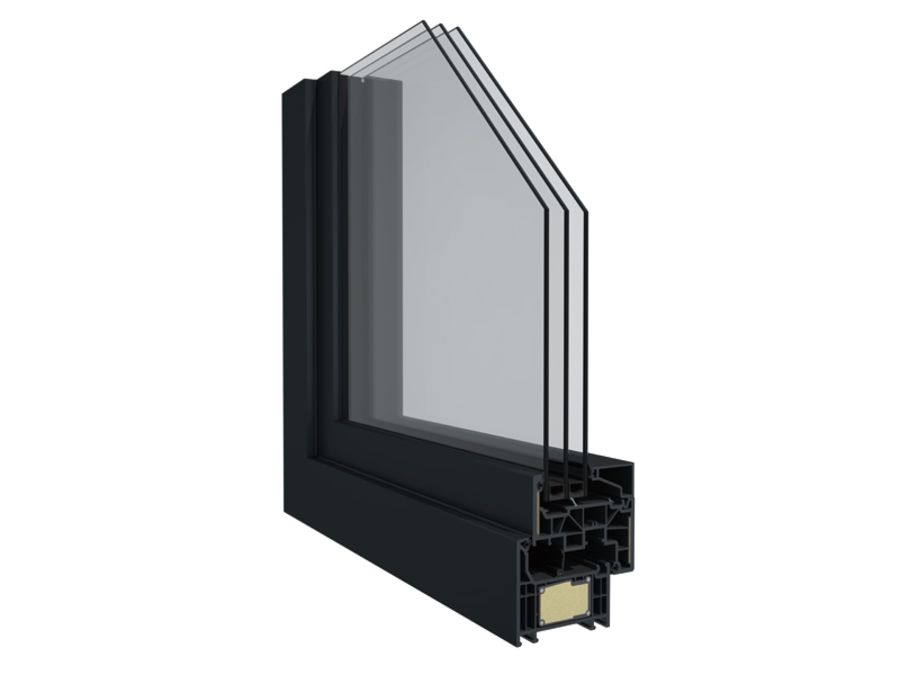

Elegant ThermoFibra incorporates a third central sealing gasket which, with its 6 90 mm sheet chambers and 5 76 mm rim chambers, makes it the most advanced and most efficient solution on the market.
Its architectural design, based on straight lines, gives the windows and doors a stylized final result.
In addition to superior performance, the system offers a perfect combination of design, strength and flexibility to meet the most demanding architectural challenges.
ARCHITECTURAL DESIGN OF STRAIGHT LINES
WITH THIRD PERIMETERAL SEALING JOINT
INSULATION UNTIL UF = 0,96 W/M²K
Linktrusion INNOVATION
Elegant ThermoFibra has the exclusive Linktrusion technology, combining innovative and traditional raw materials in its insulation and reinforcement, offering as a result responsible behavior in response to the scarcity of fossil raw materials and ecological needs.
THERMAL INSULATION
Maximum thermal performance: The Elegant ThermoFibra series incorporates a third central sealing gasket, which, with its 6 chambers in 90 mm sheet and 5 in 76 mm rim, makes it the most advanced and most efficient solution on the market.
SOUNDPROOFING
Minimal outside noise: The windows manufactured with the Elegant ThermoFibra system protect you from annoying outside noise. The acoustic attenuation achieved allows you to isolate your home, even in areas with high acoustic contamination such as the surroundings of an airport.
SPECIFICATIONS
Sheet: Straight 80 mm / curve 90 mm
Ring: 76 mm
Chambers: 6 on the leaf and 5 on the rim
Water tight: Class E 1350
Air permeability: Class 4
Wind resistance: Class C5
Thermal insulation: Uf (W / m²K) = from 0.96
Reinforcements: Steel or thermal frame and steel sheet
Reference tests: 900 x 2200 mm of 1 sheet
Certificates: Passive House: Thermal reinforcement on the rim and semi-leveled sheet of 90 mm
Finished and timeless colors
The color of your windows gives your home the character that lasts over time. Enjoy the lasting persistence of our colors, which adapt perfectly to all architectural styles.
With more than 45 available colors grouped into 5 finishing families, F2J offers you the widest range of aesthetic solutions to reflect your style in colors inspired by nature, in order to adapt perfectly to the needs of your facade, both outside and inside. And a long life cycle with a minimum of maintenance.
See more information HERE.
Minimal maintenance
PVC is a material very resistant to the action of atmospheric agents, which facilitates its maintenance. The color finishes are resistant over the years. Our varnishes reflect solar radiation instead of absorbing it.
Click on the image to see the file maximized.
