ALUMINUM

BZI Aparente/Oculta

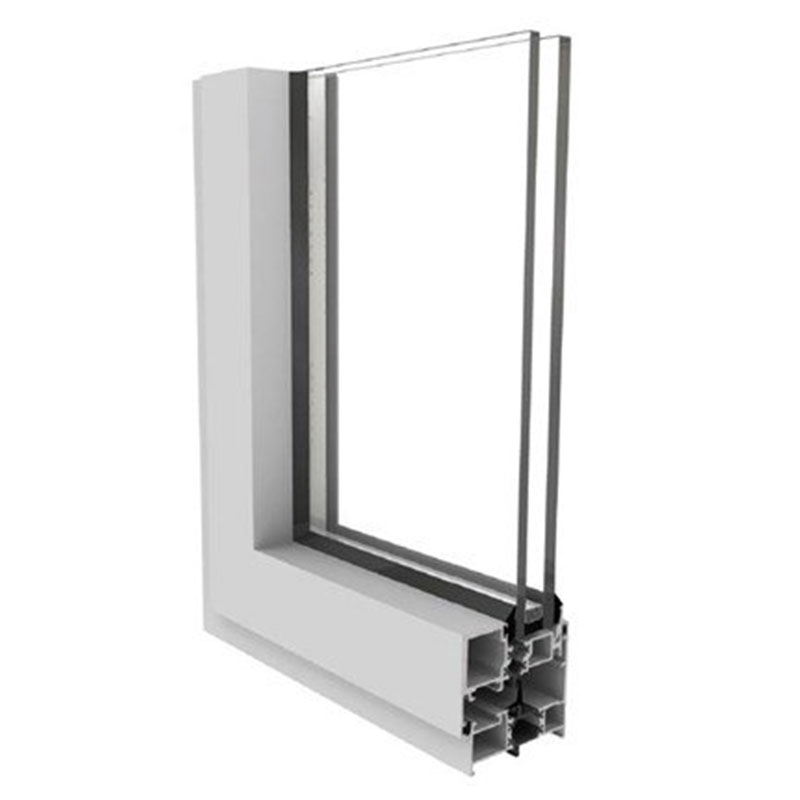

Hinged system with hidden leaf

The BZI Oculta solution presents a reduced view of aluminum with the movable sheet hidden in the fixed frame, maximizing the glazed areas through a minimum aluminum frame.

It is a solution with hidden leaf, thermal break and optimized performance, aimed at the modern market where smooth surfaces and right angles predominate, with a minimum view of aluminum, making buildings more open and transparent. The movable leaf is hidden in the fixed frame, maximizing the glazed areas through a minimum aluminum frame. It is intended for the quality construction segment, bearing in mind European standards.

The Hidden system includes innovative hardware with a minimum of visible accessories, with only the actuation crutch being visible, the hinges disappearing into the system.

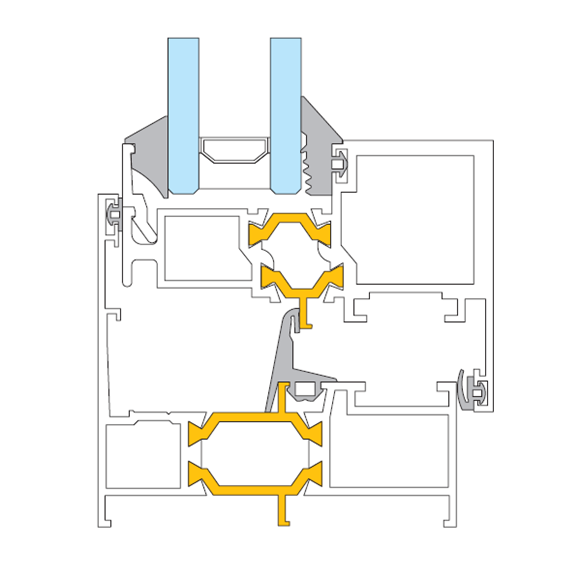

It has a fixed and movable rim 70 mm wide. Uses 26mm polyamide bars.

Ask a Budget
SKU: BZI Aparente/Oculta - Sapa Categories: , Product ID: 2098

New construction and quality renovation
It is a product aimed at the quality and renovation construction market, based mainly on a modern style where smooth surfaces and right angles predominate, although it also includes a complementary module with curved shapes and framed in traditional Portuguese architecture.

Provides high levels of comfort
• Excellent thermal performance
• High dimensions
• Classification A in SEEP (Energy Product Labeling System)
• Wide range of technical solutions
• Filling with double and triple glazing

Fillers
Fixed rim: 18mm a 28mm
Movable ring: 18mm a 32mm

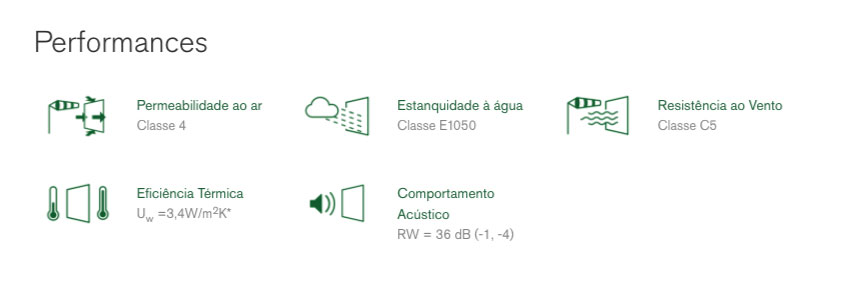

Test results obtained from a notified body, nº1239, report nº25321.
Frame withm 1600mm x 1400mm (LxH).
*Ug = 2,7W/m2K

Varied range of colors, from glossy or matte lacquers, textured or metallized, to anodized or polished.

With QUALANOD and QUALICOAT labels, guaranteeing the highest color changeability. For carrying out works by the sea, the QUALIMARINE brand is recommended. Corresponds to a preparation of the reinforced surface to resist corrosion, before the application of QUALICOAT thermo-lacquer.

Click here to check the maintenance conditions for this product.
