• Technoform Bautec exclusive polyamides;
• Extruded aluminum brackets;
• Tubular double profiles for structure brackets;
• Central seal with two-component complement;
• Common brackets for the fixed and mobile frame;
• Possibility of mounting end profiles.
ALUMINUM

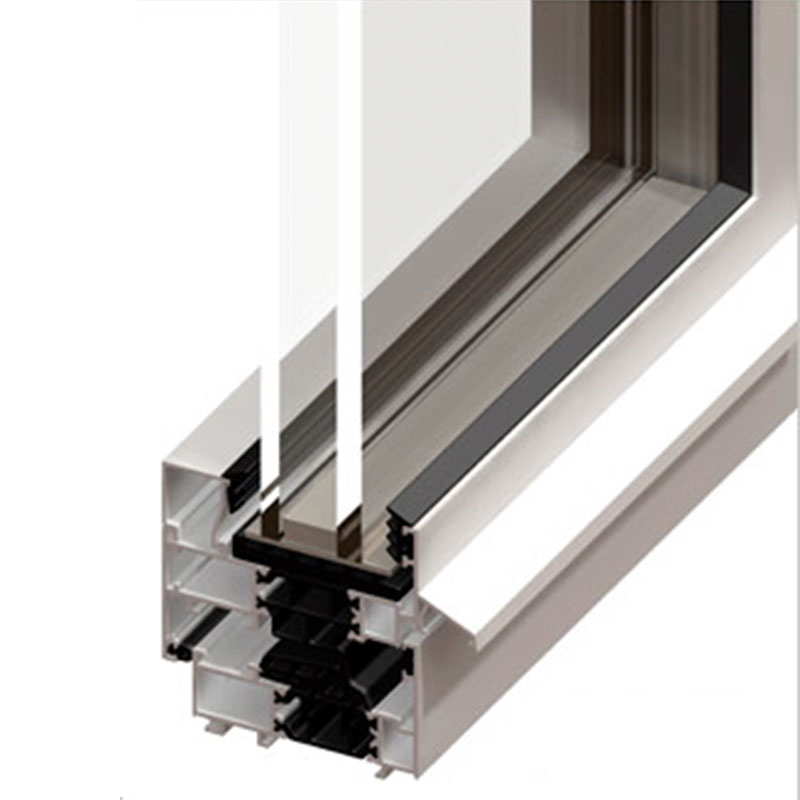

A175 Oculta
Performance | Innovation | Sustainability
Sustainable construction
Through the thermal and acoustic evolutions considered in this system, the F2J contributes decisively to increase the comfort of the rooms.
The significant improvements achieved with this solution in terms of AEV, acoustic and thermal performances are the result of the innovations we consider in product development.
CONSTRUCTIVE SOLUTIONS
- Opening window and balconies;
- Fixed glazing;
- Projection window;
- Parallel and harmonic oscillation opening.
SIZING
Movable sheets:
390 mm < height < 2700 mm
390 mm < width < 1400 mm
MANEUVERING HARDWARE
• Maximum weight per leaf: 130 Kg (stop and oscillating solution);
• Maximum weight per sheet: 120 Kg (design solution);
• Maximum weight per sheet: 70 Kg (tipping solution);
• Personalized F2J cremone;
• Exclusive hardware selected according to the type of construction, size and weight of the movable sheet.
